■ INTRODUCTION

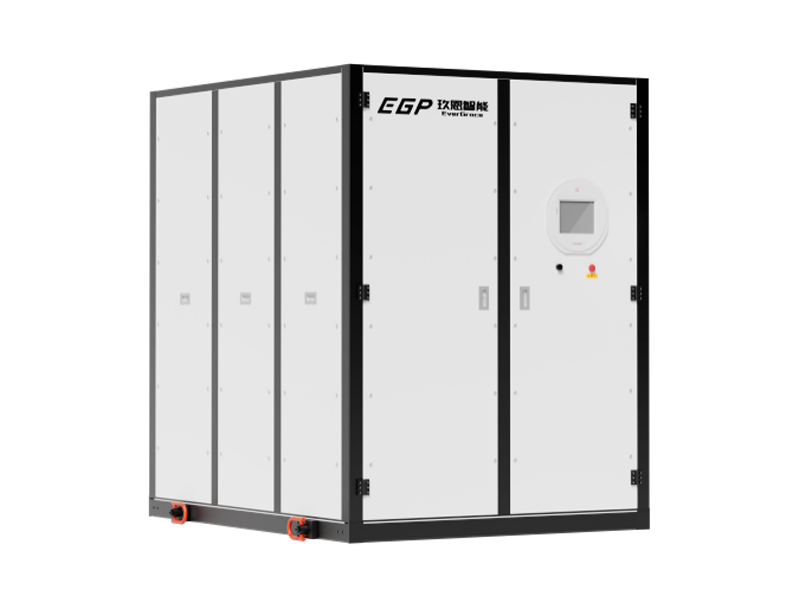

Hydrogen purifier EGS7-C operates with multiple liquid nitrogen cooled adsorption beds connected in parallel,alternating between low-temperature purification and high-temperature regeneration modes.It can remove impurities such as CH₄,N₂and Ar from hydrogen,with service life over 20 years.
■ INDEX TABLE
适用气体APPLICABLE GAS | H₂ |
型 号 M O D E L | EGS7-C |
工艺CRAFTS | ADS |
杂质IMPURITY | INLET | OUTLET |
ppm | ppb |
H₂O | <5 | <1 |
O₂ | <3 | <1 |
Co | <1 | <1 |
CO₂ | <1 | <1 |
N₂ | <1 | <1 |
Ar | <1 | <1 |
CH | <0.5 | <1 |
NMHC | <1 | <1 |
PARTICLES | — | ≤1pcs/m³(@0.003μm) |
流量范围
FLOW RANGE | — | 10-1000Nm³h |
▶ Note:Only the specification and configuration of the standard models are listed in the table.Please contact EGP for more special requirements.
