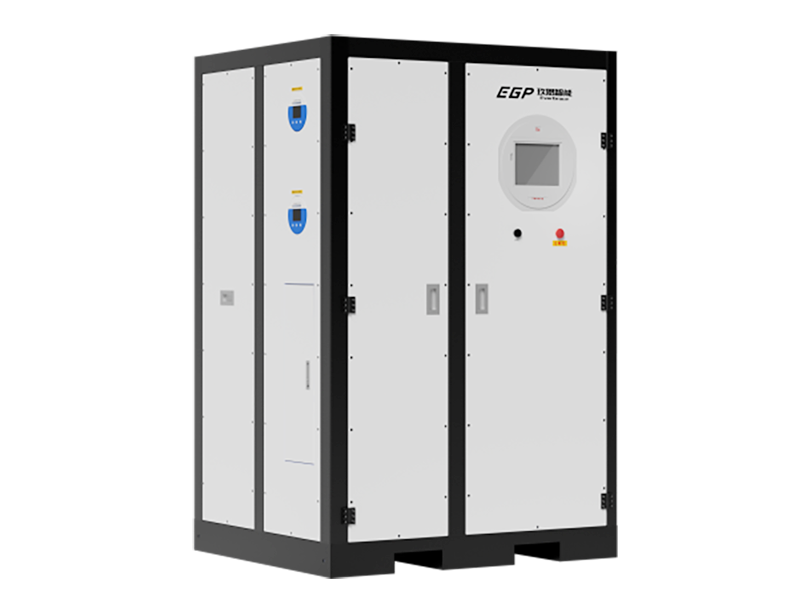

Hydrogen purifier EGS7-A operates with multiple adsorption beds connected in parallel,alternating between ambient temperature purification and heated regeneration modes,with service life over 20 years.
■ INDEX TABLE
适用气体APPLICABLE GAS | H₂ |
型号MODEL | EGS7-A | EGS7-G | EGS7-H |
工艺CRAFTS | ADS | GET | ADS+GET |
杂质IMPURITY | INLET | OUTLET | OUTLET | OUTLET |
ppm | ppb | ppb | ppb |
H₂O | <5 | <1 | <1 | <1 |
O₂ | <3 | <1 | <1 | <1 |
Co | <1 | <1 | <1 | <1 |
CO₂ | <1 | <1 | <1 | <1 |
N₂ | <1 | 一 | <1 | <1 |
Ar | <1 | 一 | 一 | 一 |
CH₄ | <0.5 | 一 | <1 | <1 |
NMHC | <1 | <1 | <1 | <1 |
PARTICLES | 一 | ≤1pcs/m³@0.003μm) |
流量范围
FLOW RANGE | 一 | 10-1000Nm³h | 10-300Nm³h | 10-300Nm³/h |
▶ Note:Only the specification and configuration of the standard models are listed in the table.Please contact EGP for more special requirements.
