EGS7-G HYDROGEN PURIFIER

•Flow range: 10-300Nm3/h

•High precision filter:0.003μm

•Outlet impurities<1ppb

•Remove impurities such as CH₄

•316L SS EP Vessel

•Customized according to the different needs of customers

APPLICABLE GAS

H₂

MODEL

EGS7-G

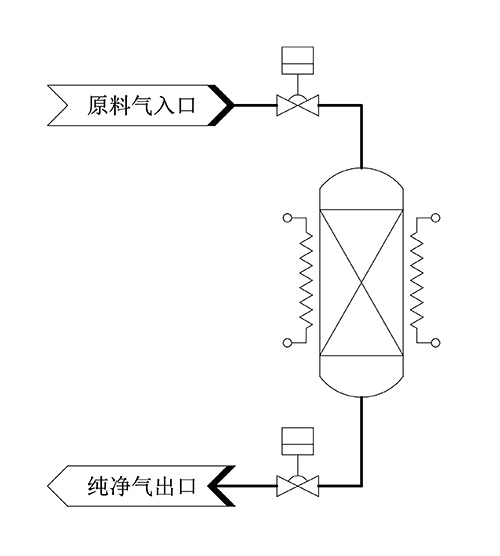

CRAFTS

GET

IMPURITY

INLET

OUTLET

ppm

ppb

H₂O

<5

<1

O₂

<3

<1

Co

<1

<1

CO₂

<1

<1

N₂

<1

<1

CH₄

<0.5

<1

NMHC

<1

<1

PARTICLES

一

≤1pcs/m³@0.003μm)

FLOW RANGE

一

10-300Nm³h

Flow range

Nm³/h

Applicable gas

Crafts

Pressure Range

Bar

Reference Dimensions

mm

10-30

H₂

1 x Getter

3.5-10

700*800*1920

50-60

H₂

1 x Getter

3.5-10

850*1000*1920

70-120

H₂

2 x Getter

3.5-10

1400*1000*1840

150-200

H₂

2 x Getter

3.5-10

2100*1300*2000

250-300

H₂

3 x Getter

3.5-10

2600*1340*2090

• Large Scale Integration

• Preform Fabrication

• Discrete Device

• Semiconductor Equipment Integration‌

• Silicon Wafers 、Substrate and Epitaxy

• Ultra-pure,mixture,and standard purifier

• LASER

• Purge、Carrier gas

• LED、LCD、OLED

• Academic and Research Institutions

• High-efficiency Solar Cell

• Pharmaceutical and Industry
